Reflected ceiling plan lighting is where a pendant scheme is either resolved or quietly compromised. The reflected ceiling plan (RCP) mirrors the ceiling onto the page as if projected down onto the floor, and it is the drawing the electrician works from when fixing outlet positions. For decorative pendants, the gap between a considered installation and an awkward one is usually decided here, weeks before anything is hung. This guide sets out how interior architects and specifiers should treat pendant fixtures on the RCP, with reference to how MOSS Objects luminaires are built and configured.

What Reflected Ceiling Plan Lighting Has to Get Right

An RCP carries more than fixture symbols. It coordinates structure, services, and finishes on a single plane, and a pendant has to find its place among ductwork, sprinkler heads, beams, and access panels. When a decorative luminaire is added late, after the services layout is frozen, the result is often a compromise: a fixture nudged off the table it was meant to centre, or a cluster squeezed against a bulkhead.

The reverse approach treats the pendant as a primary element. The designer fixes where the fixture should sit in relation to the furniture and the room geometry, then asks the services to work around that point. This is harder to coordinate but produces the installations that read as intentional. On premium hospitality and residential projects, where the lighting is part of the architecture rather than an accessory to it, this is the only approach that holds up.

A second point the RCP has to get right is honesty about what the plan cannot show. A reflected ceiling plan is a horizontal document. It fixes the x and y position of every outlet, but it says nothing about drop height, which lives in the section. Treating the RCP as complete, without a matching section, is the most common reason a pendant arrives at the right point on the ceiling and the wrong height in the room.

Getting this right is mostly a question of sequence. The earlier a decorative pendant is fixed on the RCP, the more freedom there is to route services around it; the later it arrives, the more it has to defer to a layout that is already set. On projects where the luminaire is a focal point, it is worth carrying its position through the coordination process from the first RCP issue, so that the structural and MEP teams design with the fixture in mind rather than discovering it at the end.

Marking Canopy Points and Junction Boxes

Every pendant needs a ceiling outlet, and the RCP is where its exact position is committed. For single fixtures this is straightforward: one canopy, one junction box, dimensioned to the structural grid or to the centre of the surface below. The detail that catches teams out is the multi-point luminaire, where one product needs more than one ceiling outlet.

The Kosmos collection is the clearest example in the MOSS range. Kosmos 4S and 4L suspend from a single canopy, while Kosmos 6S and 6L use two canopies, which means two separate ceiling points that must be dimensioned and coordinated on the RCP. Setting one outlet for a 6S, or spacing the two without reference to the fixed sphere geometry, produces an installation that cannot hang as designed.

Dune behaves differently, and is worth flagging precisely because it looks like it might need multiple points. Even the largest configurations, Dune 16 and Dune 20, suspend from a single steel canopy; the two LED drivers those sizes require are housed inside that one canopy, not split across the ceiling. So a large Dune cluster is still a single outlet on the RCP. Emily groups and vertical compositions are coordinated the same way, with canopy positions confirmed against the MOSS section drawing for each configuration. The rule for the specifier is simple: never assume the number of ceiling points from the size of the fixture, confirm it from the product.

Drop Heights, Clearances, and the Section

Because the RCP cannot carry drop height, every pendant marked on it needs a companion note or section that fixes the vertical dimension. The number that matters is the height of the lowest point of the luminaire above the floor or the surface below, not the cable length, which varies with ceiling height and tells the installer little on its own.

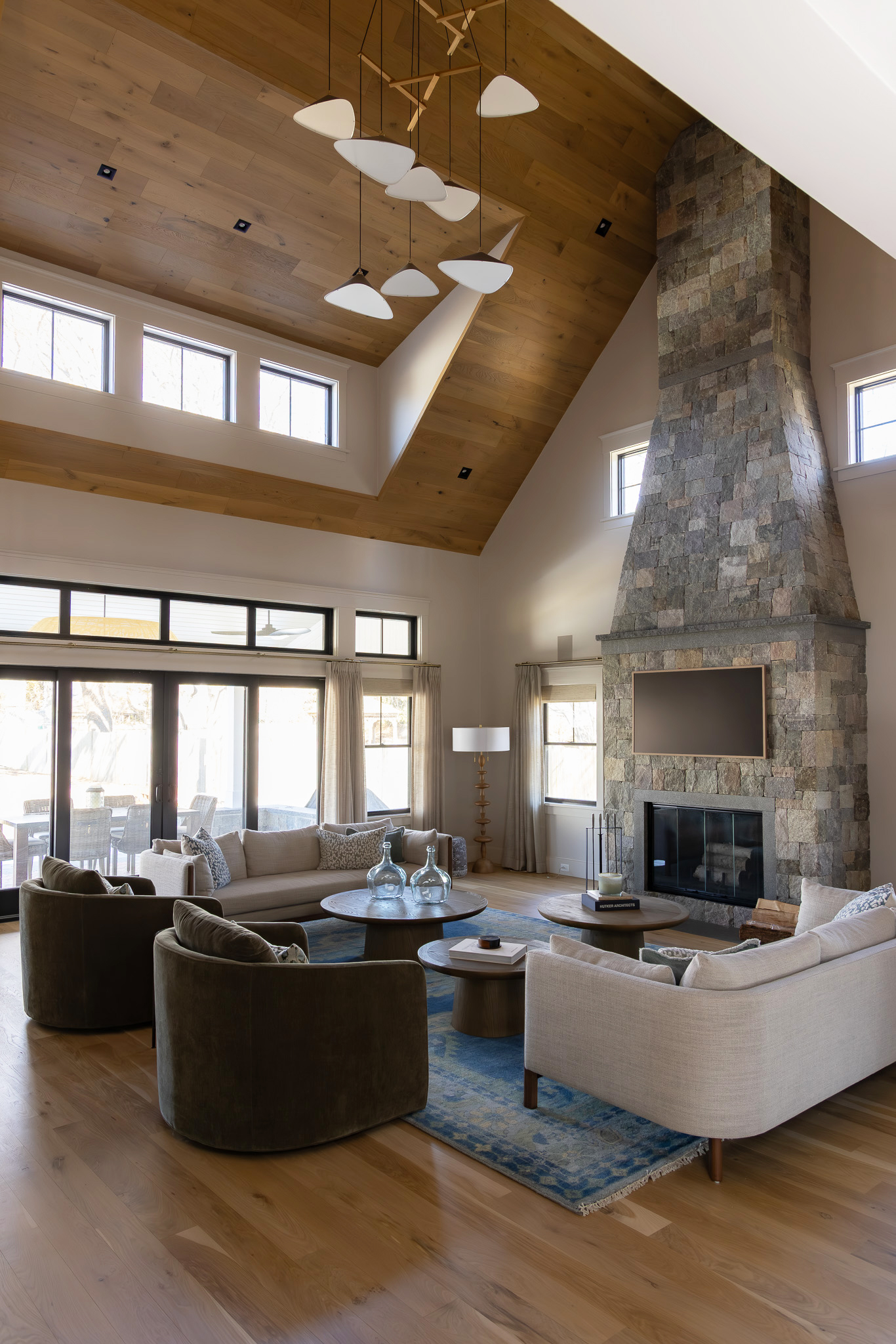

The working figures depend on the room. Over a dining or restaurant table, the underside of a MOSS pendant typically sits 65 to 75 cm above the surface. In a circulation space or lobby, the lowest element is held at 2.4 metres or more above the floor for clearance. Vertical compositions like Emily V8 through V12, or Dune in its vertical configurations, are specified by where the bottom of the run lands, then measured up to the canopy, which is the reverse of how the RCP reads.

Clearance also has to be checked against doors, joinery, and sightlines that the plan flattens out of view. A pendant that is correctly centred in plan can still foul a tall cabinet or block a view across an open-plan space once the section is drawn. The discipline is to draw both: the RCP for position, the section for height, and to keep them in agreement before the order is placed.

Open-plan interiors add a further layer, because one ceiling often serves several functions at once. A drop that suits a dining table will sit too low over an adjacent walkway, and a height that clears a circulation route will float ineffectively above a counter. Here the RCP and section work together to zone the space: each pendant or cluster is set to the surface it serves, while the heights are checked against the routes and views that pass beneath the whole ceiling.

Coordinating Pendants with Services on the Ceiling Plane

The ceiling is a contested surface. Sprinkler heads, smoke detectors, HVAC diffusers, acoustic baffles, and structural beams all compete for the same plane, and most are positioned by code or by performance rather than by composition. A decorative pendant has to be placed with those constraints visible, which is why it belongs on the coordinated RCP and not on a separate lighting sketch.

Clusters and grouped compositions need particular care. A MOSS pendant cluster reads as a single gesture only if the zone above it is clear, so the RCP should reserve a clean area for the arrangement and push services to its edges. Where a beam or bulkhead crosses the intended position, the choice is to move the fixture, adjust the configuration, or change the drop, and that decision is far cheaper made on the drawing than discovered on site.

It helps to read the ceiling in layers. The structural grid and any bulkheads come first, then the code-driven services such as sprinklers and detectors, then the air and acoustic elements, and finally the decorative pendants placed into whatever clear zones remain. Working in that order on the RCP keeps the negotiation honest: the pendant claims a defensible position rather than overlapping a fixed element that will have to win later on site.

Coordination also protects the finish. MOSS canopies are made in steel and finished to match the luminaire, so they are meant to be seen, not concealed above a slot. Knowing this on the RCP lets the team set the canopy where it sits cleanly against the ceiling, rather than colliding with a diffuser or a shadow gap. Good reflected ceiling plan lighting is, in the end, a coordination exercise: the fixture earns its position by being drawn into the ceiling alongside everything else, not laid over the top of it.

From the RCP to the Order: What MOSS Provides

MOSS Objects supports the specification process at the drawing stage, not only at delivery. For each configuration, MOSS provides scaled section drawings that give the canopy positions, the overall envelope, and the drops, so the information the RCP and section need is available before the fixture is committed. For multi-canopy products like Kosmos 6S and 6L, this is where the two ceiling points are dimensioned for the electrician.

Because every luminaire is made to order in Berlin, drops, finishes, and electrical details are set to the project rather than pulled from stock. Standard configurations in catalogue finishes run roughly 6 to 12 weeks; custom finishes or modified geometries extend that, which is worth building into the programme so the RCP is not held open waiting on a late decision. Dimming protocol, Triac, DALI, or 0 to 10V, is also specified at order and should be coordinated with the control system shown on the RCP.

The shorter version is that the reflected ceiling plan is where a pendant scheme becomes real, and the more of the product's actual geometry is on it, the fewer surprises arrive on site. To work through a specific ceiling plan, canopy layout, or drop schedule, contact MOSS Objects directly and we will provide the drawings your RCP and section need.
